SPECIFICATIONS

Brand Name: JINGYANGPV

Certification: CE,FCC,RoHS,UL,weee

Flexible Solar Panel: Yes

Foldable Solar Panel: No

High-concerned chemical: None

Material: Monocrystalline Silicon

Max. Power: 120

Model Number: ETFE-36-120

Module Efficien: 24%

Nominal Capacity: 120

Number of Cells: 36

Number of Panels: 1

Origin: Mainland China

Rigid Solar Panel: No

Size: 1070mm*570mm*2.5mm

Type: Solar Cells

is_customized: Yes

Advantages of JINGYANG ETFE Solar Panels:

Stronger Box Package, sturdy and durable, good heat dissipation. No hot spots will appear.

Japan ETFE Film Coating is corrosion resistant, Bear Higher Temperature; Higher Efficiency and is suitable for both indoor and outdoor use.

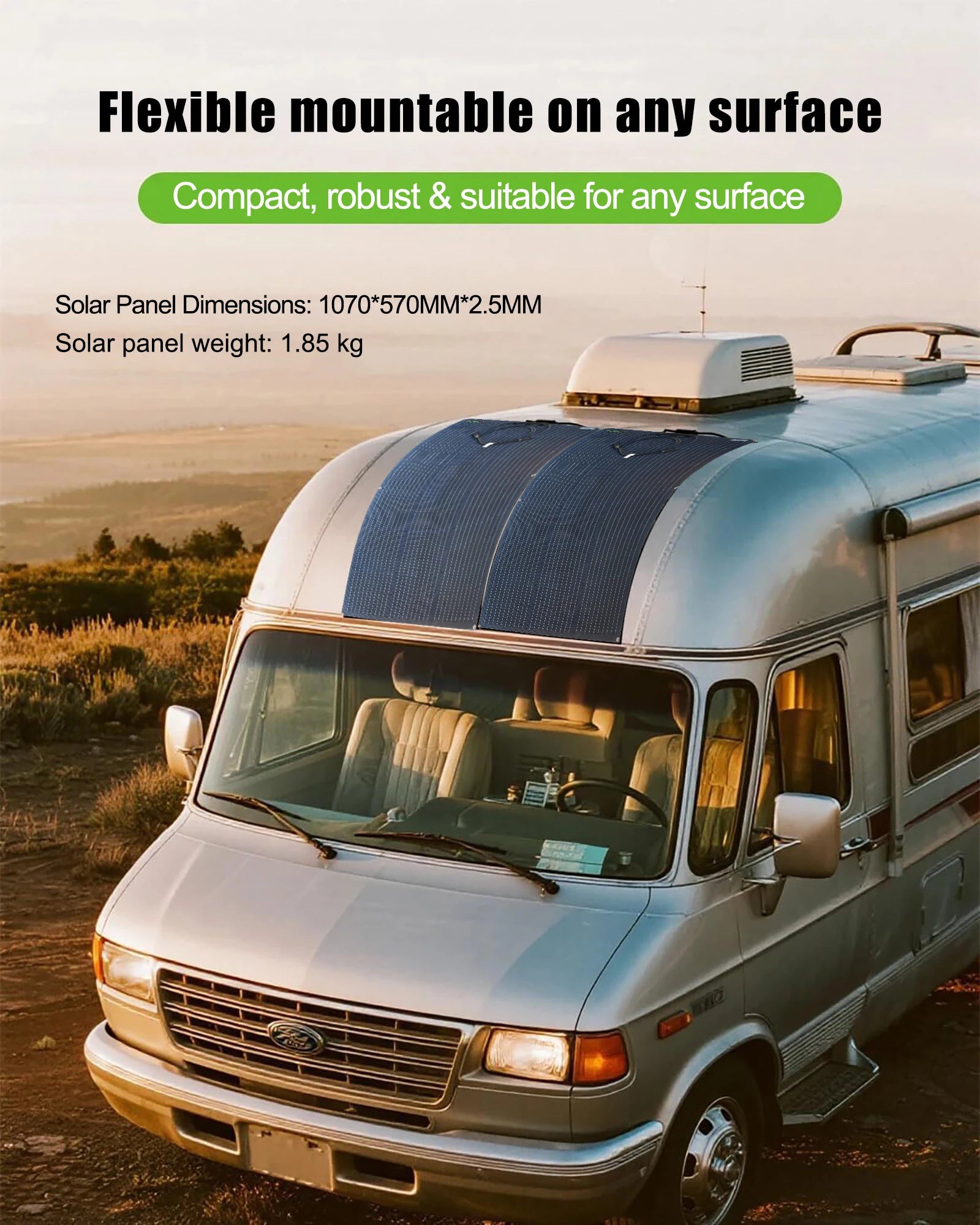

With a service life of more than 8-10 years, it is Very Thin And Durablle With Less Weight. It is the best choice for motorhomes and Camping, Boat, Marine, RV, Bus Car Roof. It has a very high cost performance and is the best choice for home energy investment Or Outdoor Usage.

Product description:

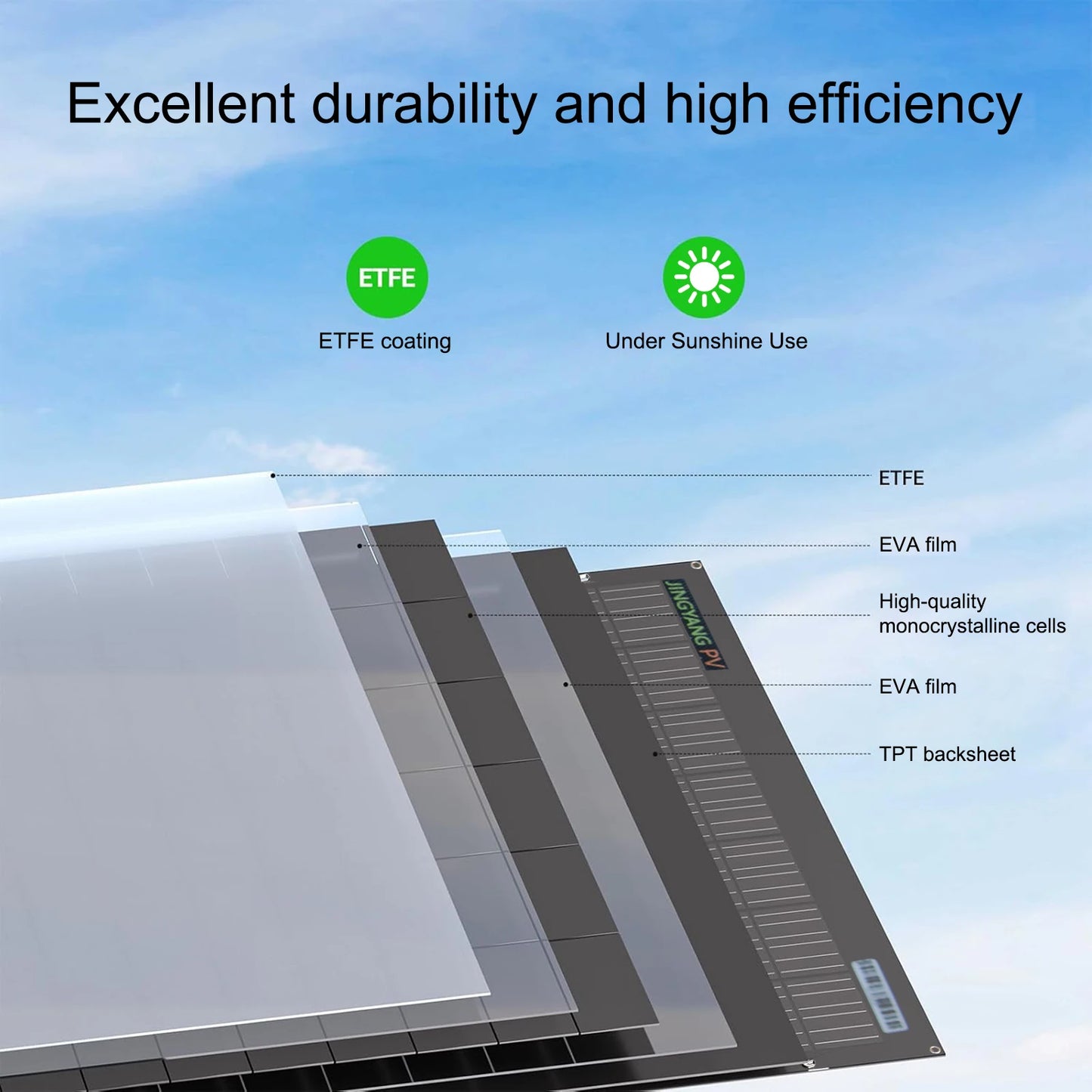

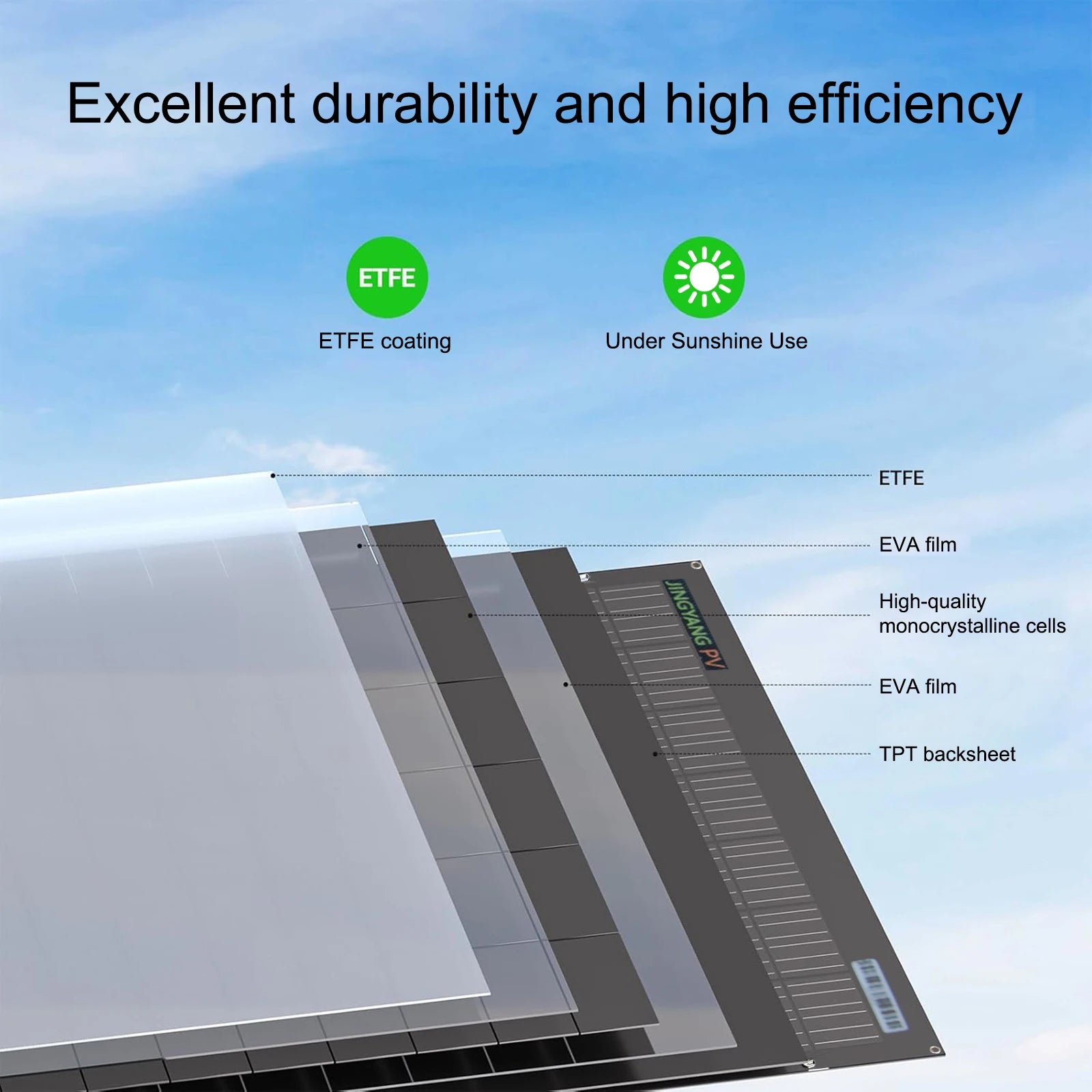

The surface is Total Japan ETFE Film Coating, waterproof, snowproof, resistant to small hail.

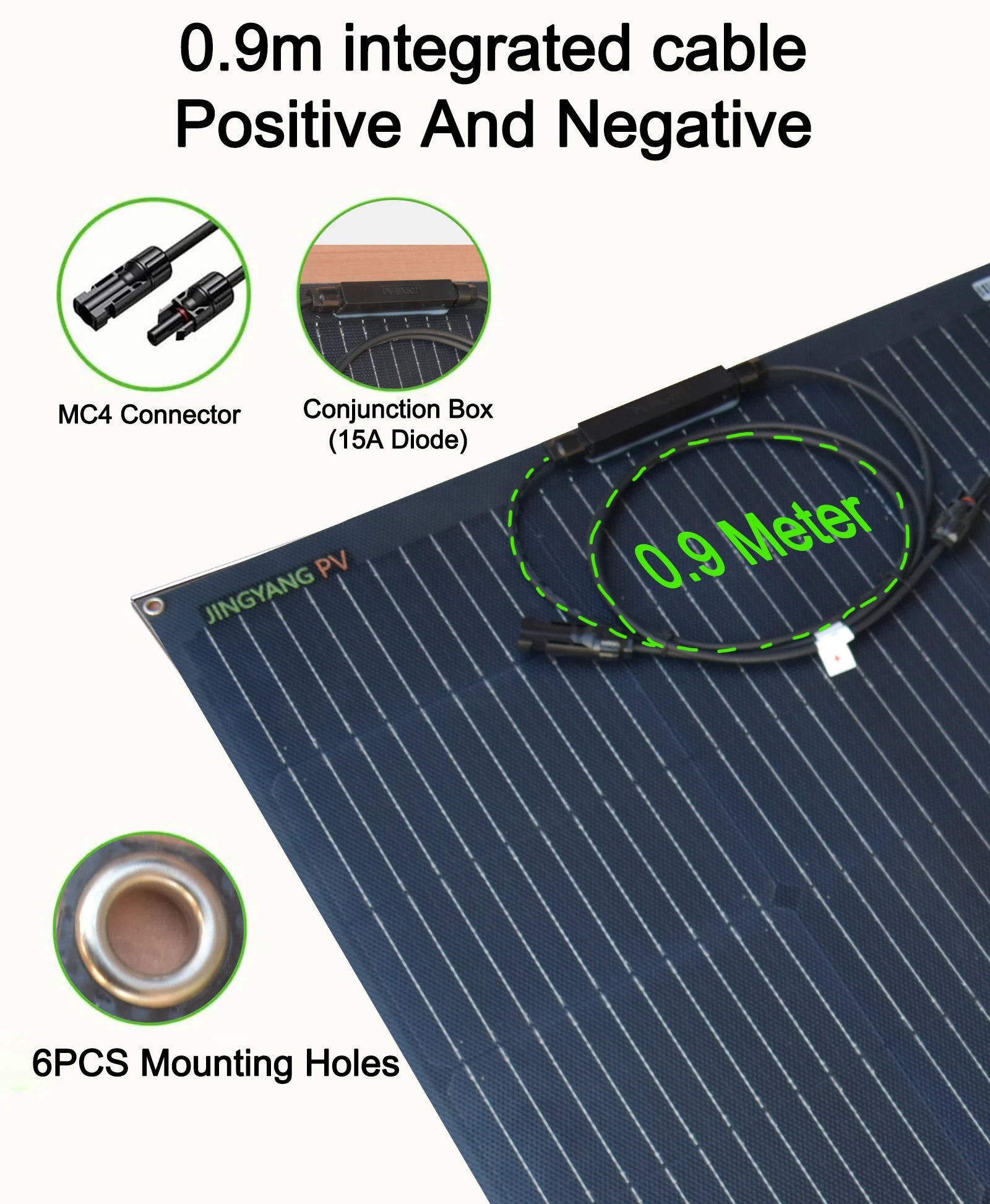

By-pass Diodes are pre-installed in junction box and a pair of 2.5MM2 cables with MC4 connectors comes with the panel automatically, Cable Length with About 900MM

The back has 6 drill holes that can be quickly installed.

ETFE 120W SOLAR PANEL:  1：

Model:ETFE-36-120
Material:Monocrystalline silicon

Maximum Power(Pmax):120W

Maximum Power Voltage(Vmp):18V

Maximum Power Current (Imp): 6.67A

Open-Circuit Voltage (Voc): 21V

Short-Circuit Current (Isc): 7.3A

Solar Cell: Newly 182MM*91MM Monocrystalline

Nominal Operating Cell Temp.(NOCT):-45 to 80℃

Maximum System Voltage:DC1000V

Maximum Series Fuse:10A

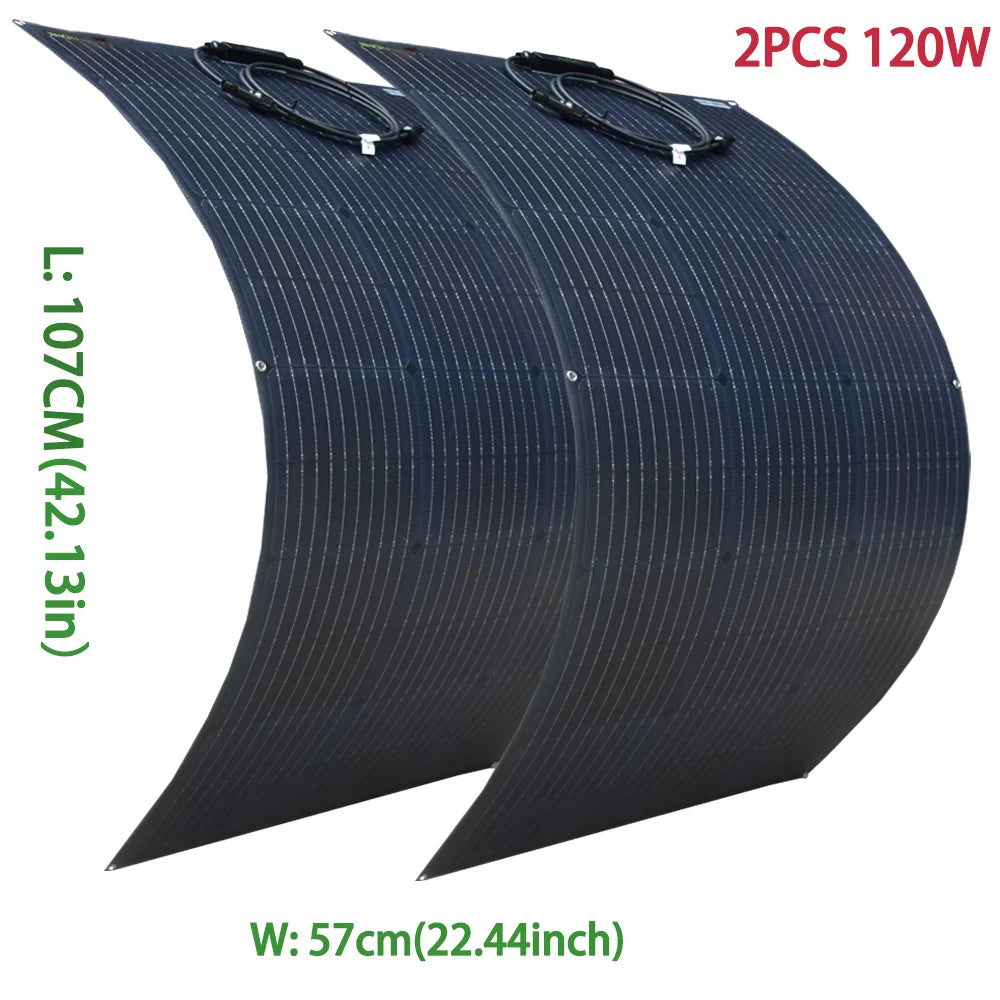

Dimension:1070mm*570mm*2.5mm

Package Weight:1.98kg

(The above data is based on the laboratory standard test environment)
